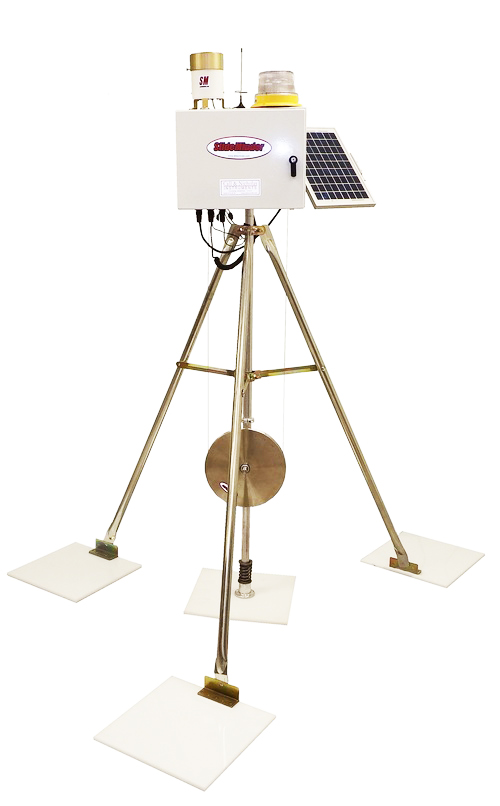

tHE second Generation Slideminder

  • Field proven to withstand rugged conditions and extreme temperatures

  • Wi-Fi and FHSS radio technologies do not interfere with existing communications. Internationally complient

  • Complete customization of alarms allows geotechnical personnel to set user-defined warnings for multiple velocities and displacements for each machine

  • Warnings and alarms can activate strobes and be sent via cell phones, web browsers, and e-mail

  • Stand-alone system operates remotely and requires very little maintenance

  • Software utilizes web-based graphing engine that can be viewed and controlled on any computer on the network

  • Allows monitoring throughout a slope failure without damage to the unit


  • Powder coated NEMA4 enclosure

  • Measurements: 16x12x7 inches

OBSERVATION, RECORDING, EVALUATION & ADMINISTRATIVE DATABASE (OREAD)

The SlideMinder Slope Monitoring & Warning System works using our proprietary server software, OREAD. Easy to use and reliable, OREAD uses an intuitive graphical user interface. The Web-Based design allows easy access for authorized users from multiple locations.

Easily graph the following.

  • Displacement

  • Velocity

  • Inverse Velocity

  • Battery Voltage and Recharge

  • Temperature

  • Precipitation





OREAD is also where users set and edit Alarms.  Alarms are designed to activate warning devices, if desired, send out emails or text messages to appropriate personnel when specified slope displacement and/or velocities are exceeded. OREAD is included and installed with the initial SlideMinder installation.

SERVER REQUIREMENTS:

  • Windows 7, 64-bit, 1 GB RAM

  • USB port

  • Video card

Other Software Aspects

  • Data available in SQL or graphic form

  • User-defined alarms and alarm groups

  • User-specified warning notifications

    • Electronic (Browser/Email/SMS)

    • Physical (Strobes)

  • Monitors and reports battery health and temperature

  • GUI interface allows viewing from internet; multi-user availability from any computer on the network



MEASUREMENT: A highly accurate encoder is used to measure displacement.  All data is recorded and stored at the on-site server for retrieval and analysis.

  • Wireline: 600 ft or 1000 ft (183 m / 305 m)

  • Sensitivity: 0.01 in. or 0.0254cm

  • Encoder resolution: 4096 CPR

Power:

  • 12V, 14Ah battery (powers unit for weeks w/o solar)

  • 10W solar panel

  • Unit draws 28mA

  • Operating temperature: -40F to 140F (-40C to 60C)

communication:

  • Frequency: 902 – 928 MHz FHSS (Standard) or 915.75 – 927 MHz FHSS (International)

  • Range: 2 miles (3.2 km) with 5 dBi antenna or 5 miles (8 km) with 6 dBi antenna

  • Broadcast power: 1W

  • Repeaters available for extended radio coverage

  • Wi-Fi Capable with WiBox
