Landslide Monitoring Equipment - SlideMinder
Wireline Extensometer Slope Monitoring & Warning System

MX

When Remote Telemetry is not required

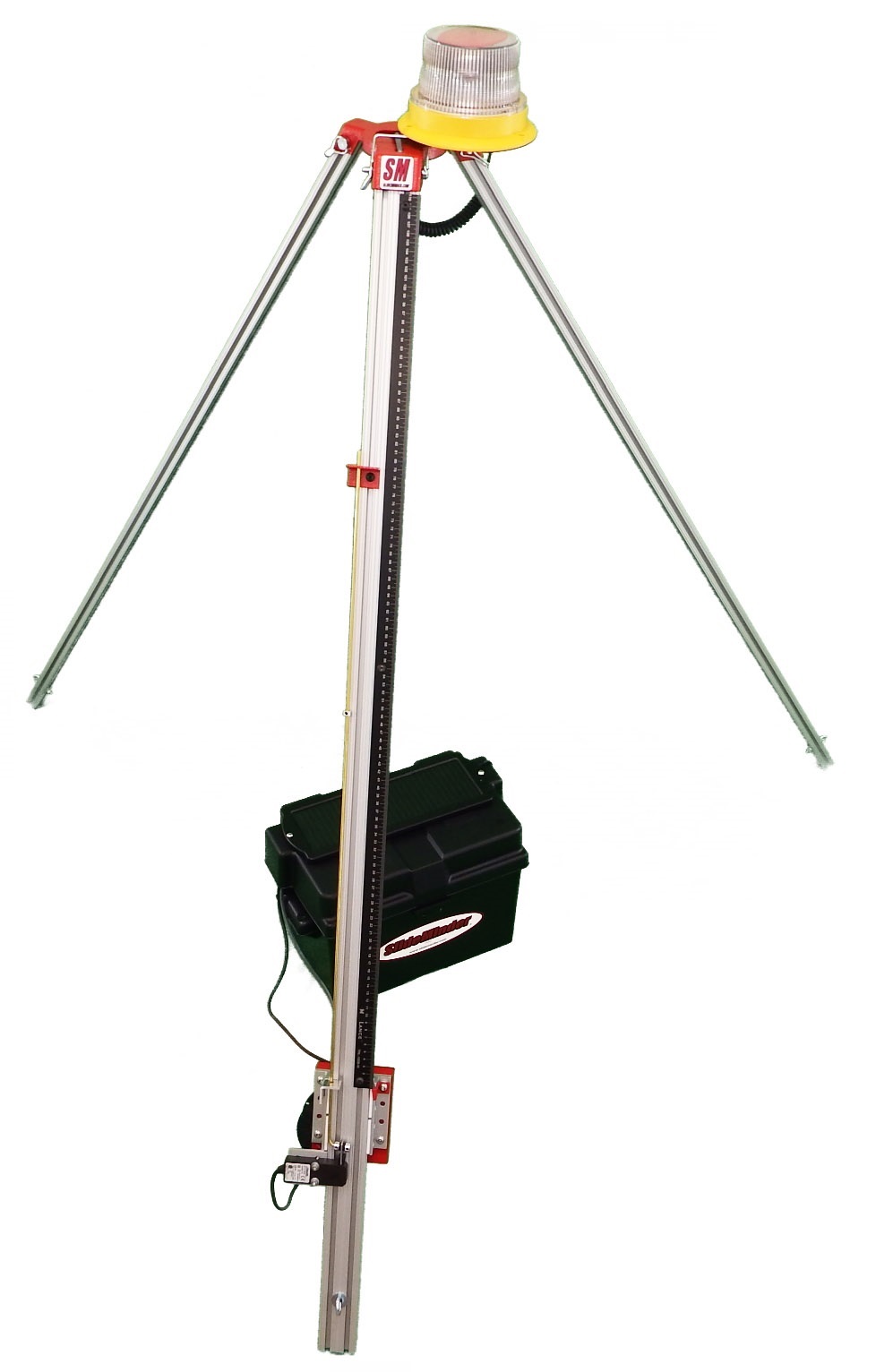

Manual Extensometer

The Manual Wireline Extensometer is easily deployable, equipped with a warning strobe, and all-weather external battery recharge kit. Warning Strobe is self charging and lasts for 24 hours after activation. Readings must be obtained at interval by personnel. Audible alarm also available.

  • Millimeter accuracy and easily adjustable

  • Strobe provides visual alert when user-specified displacement occurs allowing for remote operation

  • Withstands operation in harsh conditions

  • Compact to allow fast set-up and relocation (24lb.)

  • 600’ (183m) of specialty wire strength with minimal thermal expansion

  • Sand bags anchor points for windy environment

  • Slide mechanism constructed from synthetic, oil free bearings

  • (1) - 12v, 14Ah battery is solar powered

Unit folds to allow quick setup and relocation
